TPC6201 is a N-channel field effect transistor produced by Toshiba, mainly used in HDD motor drive, notebook PC and portable equipment

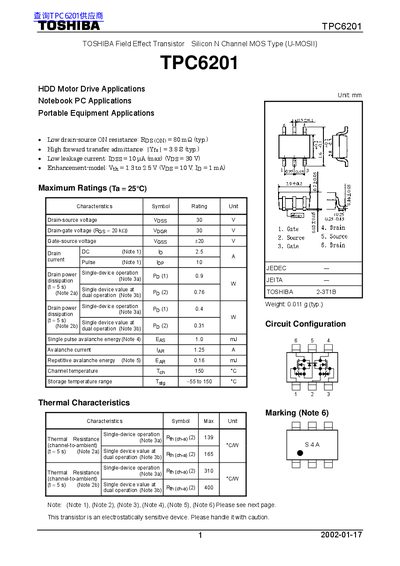

This document is a technical datasheet for the Toshiba TPC6201, an N-channel enhancement-mode Field Effect Transistor (MOS Type U-MOSII). It specifies key parameters such as low drain-source ON resistance of 80 mΩ typical and high forward transfer admittance. The device is designed for applications including HDD motor drives, notebook PCs, and portable equipment.
| Drain-source ON resistance (typical) | 80 mΩ |
|---|---|
| Forward transfer admittance (typical) | 3.8 S |
| Leakage current (max) | 10 pA |
| Gate threshold voltage range | 1.3 to 2.5 V |
| Drain-source breakdown voltage (max) | 30 V |
| Pulse drain current (max) | 25 A |
The TPC6201 is designed for use in HDD motor drives, notebook PCs, and portable equipment.
The maximum channel temperature must not exceed 150 °C.
