This document describes the features and characteristics of the MITSUBISHI Nch POWER MOSFET FS50KM-2. This product is suitable for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters. It features low on-state resistance, high voltage and current withstand capabilities, and an integrated fast recovery diode.

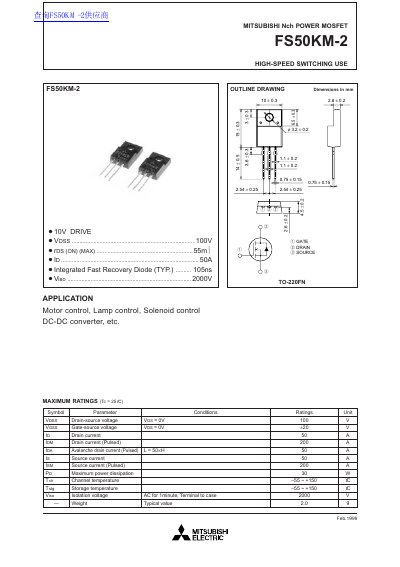

The document is a technical specification sheet for the Mitsubishi FS50KM-2 Nch Power MOSFET. It details the device's application in motor control, lamp control, solenoid control, and DC-DC converters. The datasheet includes maximum ratings such as a drain-source voltage of 100V and a continuous drain current of 50A. This manual is written in Chinese.
| Drain-source voltage (VDSS) | 100V |
|---|---|
| On-state resistance (rDS(ON)) | 55mΩ |
| Integrated Fast Recovery Diode time | 105ns |
