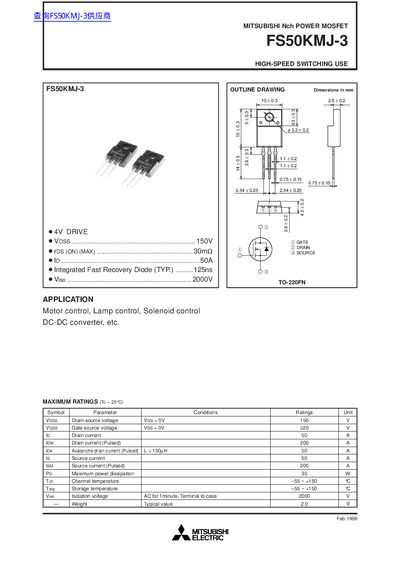

This document provides the outline dimensions and technical specifications of the MITSUBISHI Nch power MOSFET FS50KMJ-3, as well as its applications in high-speed switching, such as motor control, lamp control, solenoid control, and DC-DC converters.
This document is a technical datasheet for the Mitsubishi Electric FS50KMJ-3, an Nch Power MOSFET designed for high-speed switching applications. The device features a TO-220FN package and is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
| Drain-source voltage (VDS) | 150 V |
|---|---|
| Gate-source voltage (VGS) | +20 V |
| Drain current (ID) | 50 A |
| Maximum power dissipation (Pd) | 35 W |
| Channel temperature range | -55 ~ +150 °C |
This device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum power dissipation is rated at 35 W when the case temperature is 25°C.
The typical weight of the FS50KMJ-3 MOSFET is 2.0 g.
