FS50UM-2 is a Nch power MOSFET produced by MITSUBISHI. It is suitable for motor control, lamp control, relay control, DC-DC converter and other scenarios. Its maximum voltage is 100V, maximum current is 50A, and typical on-resistance is 55mΩ.

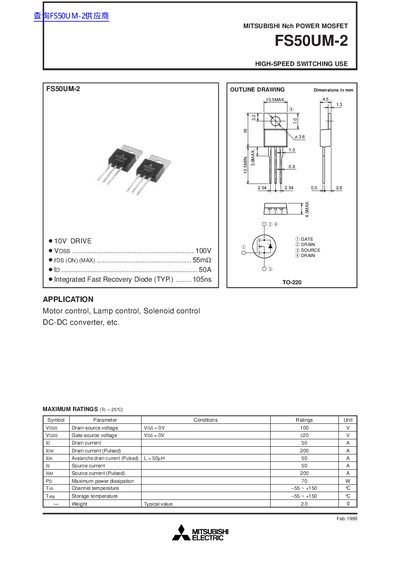

This document is a technical datasheet for the Mitsubishi Electric FS50UM-2, an N-channel Power MOSFET intended for high-speed switching use. The device features a TO-220 package and is rated for a maximum drain-source voltage of 100V and a continuous drain current of 50A.
The datasheet provides comprehensive electrical characteristics, including input/output capacitance values, threshold voltage ranges, and thermal resistance data. It also includes performance curves illustrating power dissipation derating, safe operating areas, and switching characteristics under various conditions.
| Drain current (ID) | 50 A |
|---|---|
| Maximum power dissipation (Pb) | 70 W |
| Channel temperature range | -55 ~ +150 °C |
The maximum power dissipation is rated at 70 W.
The channel temperature ranges from -55 to +150 °C.
The typical weight value is 2.0 g.
