FS50KMJ-06 is a high-voltage and high-current Nch power MOSFET produced by MITSUBISHI. Its maximum working voltage is 60V and maximum current is 50A. It has a fast switching speed and is suitable for applications such as motor control, lamp control, and relay control.

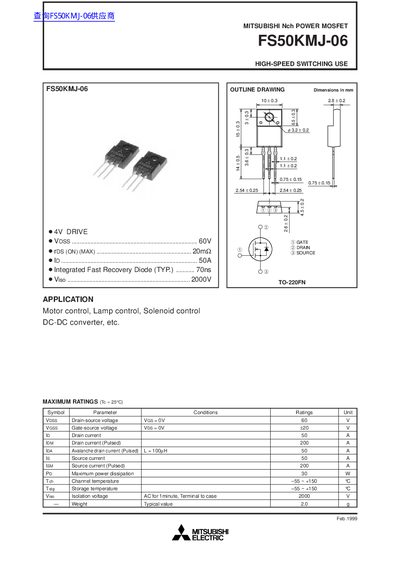

This document is a technical datasheet for the Mitsubishi FS50KMJ-06 Nch Power MOSFET. It outlines the device's dimensions and intended applications, including motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics such as maximum ratings, breakdown voltages, on-state resistance, and capacitance values at a channel temperature of 25°C. Additionally, it includes performance curves for power dissipation, safe operating areas, switching times, and thermal impedance.
| Drain-source voltage (VDS) | 60V |
|---|
This device is intended for high-speed switching use in motor control, lamp control, solenoid control, and DC-DC converters.
