FS50SM-06 is a Nch power MOSFET produced by Mitsubishi. This device has the characteristics of high switching speed, low on-resistance and large current, and is suitable for applications such as motor control, lamp control, relay control and DC-DC converter.

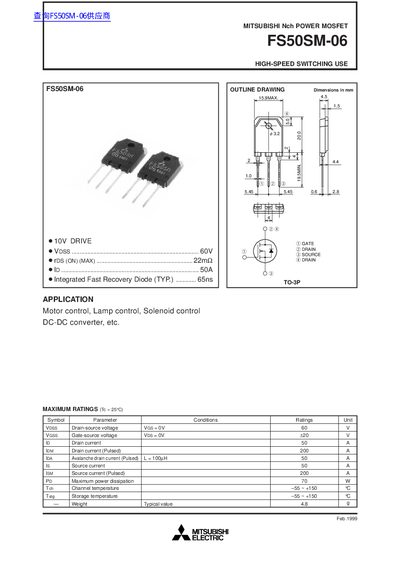

This document is a technical datasheet for the Mitsubishi Electric FS50SM-06, an N-channel Power MOSFET designed for high-speed switching applications. The device features a TO-3P package and is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics including maximum ratings such as a drain-source voltage of 60V and a pulsed drain current of 200A. It also includes detailed performance curves for capacitance, switching times, thermal resistance, and safe operating areas.
| Drain-source voltage (VDSS) | 60 V |
|---|---|
| Gate-source voltage (VGss) | +20 V |
| Drain current (ID) | 50 A |
| Pulsed Drain current (IDM) | 200 A |
| Maximum power dissipation (Pb) | 70 W |
| Channel temperature range (Tch) | -55 ~ +150 °C |
This device is intended for use in motor control, lamp control, solenoid control, and DC-DC converters.
The maximum power dissipation is rated at 70 W when the case temperature is 25°C.
The device can operate with a channel temperature ranging from -55 to +150 °C.
