FS50SMJ-06 is a Nch power MOSFET produced by MITSUBISHI. Its maximum breakdown voltage is 60V, maximum current is 50A, and maximum power is 70W. It has a fast switching speed and is suitable for applications such as motor control, lamp control, relay control, and DC-DC converter.

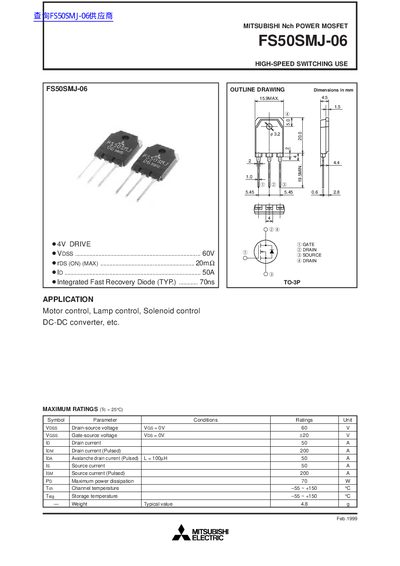

This document is a technical datasheet for the Mitsubishi Electric FS50SMJ-06, an N-channel Power MOSFET intended for high-speed switching uses. The device features a TO-3P package and is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The document provides maximum ratings, electrical characteristics, and typical performance curves including power dissipation derating, safe operating areas, capacitance vs. voltage, switching characteristics, and transient thermal impedance.
| Drain current | 50 A |
|---|---|
| Maximum power dissipation | 70 W |
| Channel temperature range | -55 ~ +150 °C |
The device is intended for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum power dissipation is rated at 70 W when the case temperature is 25°C.
The device operates with a channel temperature between -55°C and +150°C, and can be stored within the same range.
The typical weight of the FS50SMJ-06 MOSFET is 48 g.
