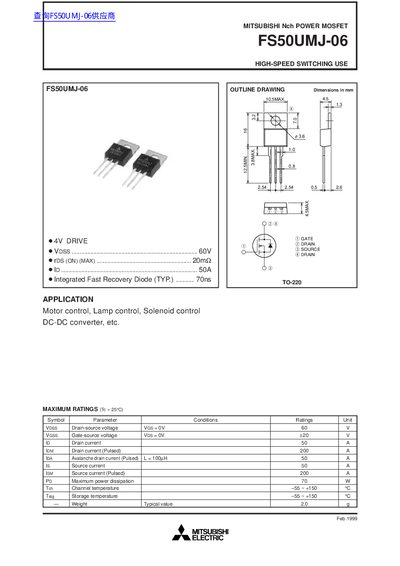

Mitsubishi FS50UMJ-06 Nch Power MOSFET Datasheet

FS50UMJ-06 is a high-performance N-channel MOSFET manufactured by MITSUBISHI. The device has a maximum drain-source voltage of 60V, a drain-source on-state resistance of 20mΩ, a maximum current of 50A, and a switching time of 70ns. It is suitable for use in motor control, lamp control, and relay control applications.

Brand: Mitsubishi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 48 KB
Published: 07 June, 2012
Updated: 01 October, 2023
MD5 checksum: B17ABD2AD718EBD40DC56EEFFA3A3942
PDF: Mitsubishi FS50UMJ-06 Nch Power MOSFET Datasheet PDF

About this manual

This document is a technical datasheet for the Mitsubishi FS50UMJ-06, an N-channel Power MOSFET. It provides detailed electrical characteristics and performance curves suitable for high-speed switching uses such as motor control, lamp control, solenoid control, and DC-DC converters.

What's inside

Maximum Ratings
Electrical Characteristics
Performance Curves
Power Dissipation Derating
Maximum Safe Operating Area

Specifications

Drain-source voltage (VDS)	60V
Integrated Fast Recovery Diode	70ns
Drain-source on-state resistance (rDS(ON))	20mΩ

Frequently asked questions

What are the stated applications for this MOSFET?

This device is intended for high-speed switching uses such as motor control, lamp control, solenoid control, and DC-DC converters.

What is the typical reverse recovery time of the integrated diode?

The typical reverse recovery time for the integrated fast recovery diode is 70 ns.
