FS50KMJ-2 is a Nch power MOSFET produced by Mitsubishi, with a maximum operating voltage of 100V, a maximum on-resistance of 48mΩ, a maximum current of 50A, and an operating temperature of -55~+150℃.

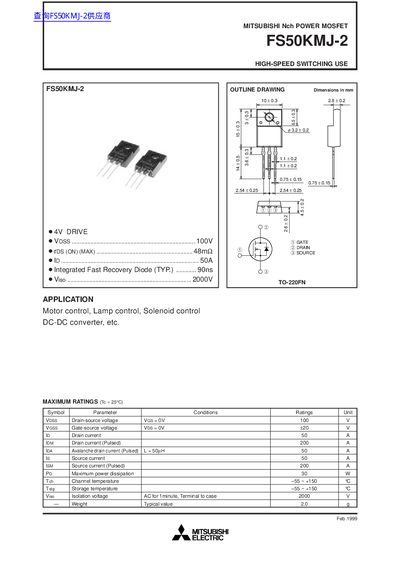

The document outlines the physical dimensions of the TO-220FN package and lists maximum ratings including a drain-source voltage of 100V, a continuous drain current of 50A, and an integrated fast recovery diode with a typical reverse recovery time of 90ns. It is intended for use in motor control, lamp control, solenoid control, and DC-DC converters.
| Drain-source voltage (Max) | 100V |
|---|---|
| Integrated Fast Recovery Diode (Typ.) | 90ns |
| Isolation voltage | 2000V |
The device is intended for use in motor control, lamp control, solenoid control, and DC-DC converters.
