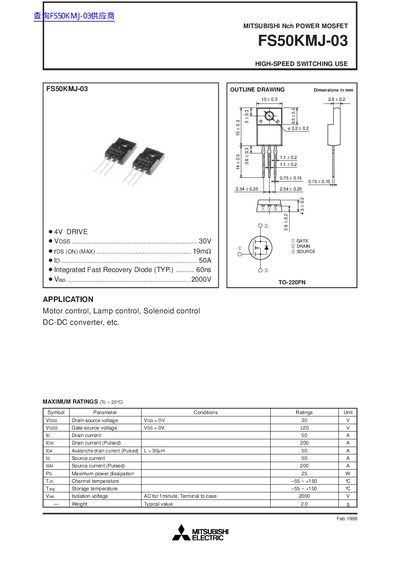

This document provides information on the outline dimensions, maximum ratings, and electrical characteristics of the MITSUBISHI Nch POWER MOSFET FS50KMJ-03. The product is suitable for high-speed switching applications such as motor control, lamp control, solenoid control, DC-DC converters, etc.
This document is a technical datasheet for the Mitsubishi Electric FS50KMJ-03, an Nch Power MOSFET intended for high-speed switching use. The device features a TO-220FN package and is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides maximum ratings, electrical characteristics, and typical performance curves including power dissipation derating, safe operating area, output characteristics, switching characteristics, and transient thermal impedance.
| Drain-source voltage (VDS) | 30 V |
|---|---|
| Gate-source voltage (VGS) | +20 V |
| Drain current (ID) | 50 A |
| Maximum power dissipation (PD) | 25 W |
| Channel temperature range | -55 ~ +150 °C |
| Package type | TO-220FN |
The device is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The continuous drain current rating is 50 A.
