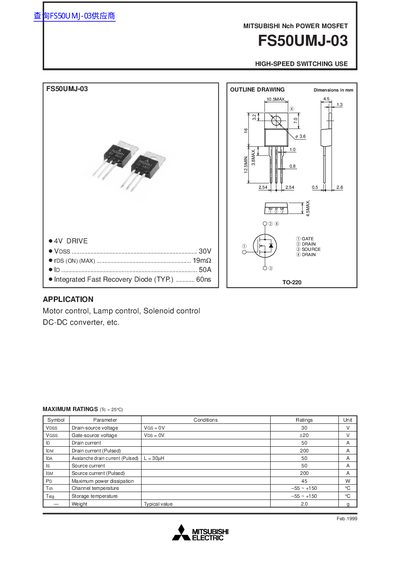

This document provides the outline dimensions, maximum ratings, and electrical characteristics of the MITSUBISHI Nch POWER MOSFET FS50UMJ-03. The product is designed for high-speed switching applications, such as motor control, lamp control, solenoid control, and DC-DC converters.
This document is a technical datasheet for the Mitsubishi Electric FS50UMJ-03, an N-channel Power MOSFET designed specifically for high-speed switching applications. The device features a TO-220 package and is suitable for use in motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics including maximum ratings such as a drain-source voltage of 30V and a pulsed drain current of 200A. It also details typical performance curves for on-state resistance, capacitance, switching times, and thermal impedance at various temperatures.
| Drain-source voltage (VDS) | 30 V |
|---|---|
| Gate-source voltage (VGSS) | +20 V |
| Drain current (ID) | 50 A |
| Pulsed Drain current (IDM) | 200 A |
| Maximum power dissipation (Pd) | 45 W |
| Channel temperature range | -55 ~ +150 °C |
| Package type | TO-220 |
The maximum power dissipation rating is 45 W.
The typical weight of the device is 2.0 g.
