419 MCC 72 MCD 72 is a bidirectional controllable thyristor switch produced by IXYS company. It has an international standard package JEDEC TO-240 AA, direct copper bonded Al2O3 - ceramic base plate, planar passivated chips, isolation voltage 3600 V~, UL registered, E 72873, gate-cathode twin pins, etc. It can be applied to DC motor control, soft start AC motor controller, lighting, heat and temperature control.

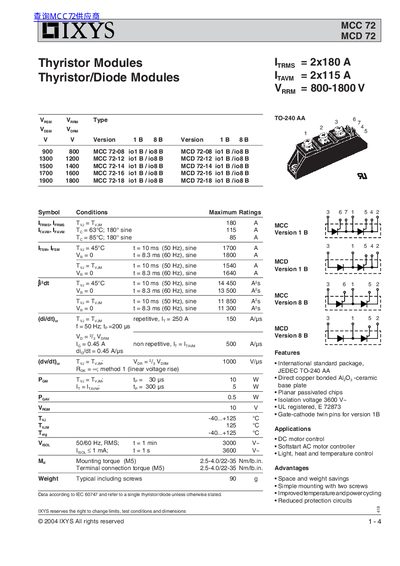

The document details the IXYS MCC72 and MCD72 series of thyristor and diode modules. These devices feature an international standard JEDEC TO-240 AA package with a direct copper bonded Al2O3 ceramic base plate, designed for applications such as DC motor control, softstart AC motor controllers, and light or heat control.
| RMS Current (ITrms) | 2 x 180 A |
|---|---|
| Average Current (ITavm) | 2 x 115 A |
| Repetitive Peak Reverse Voltage (VRRM) | 800-1800 V |
| Package Type | JEDEC TO-240 AA |
| Isolation Voltage (VISOL) | 3600 V~ |
They are used for DC motor control, softstart AC motor controllers, and light, heat, and temperature control.
The modules can be stored between -40°C and +125°C.
