This document is a product manual from IXYS, which introduces the features and characteristics of the MCC 60-16io1 B model. The product features international standard packaging, direct copper bonded Al2O3-ceramic base plate, planar passivated chips, and isolation voltage of 3600V~. Applications include DC motor control, softstart AC motor controller, and light, heat, and temperature control. The product offers advantages such as space and weight savings, simple mounting with two screws, improved temperature and power cycling, and reduced protection circuits.

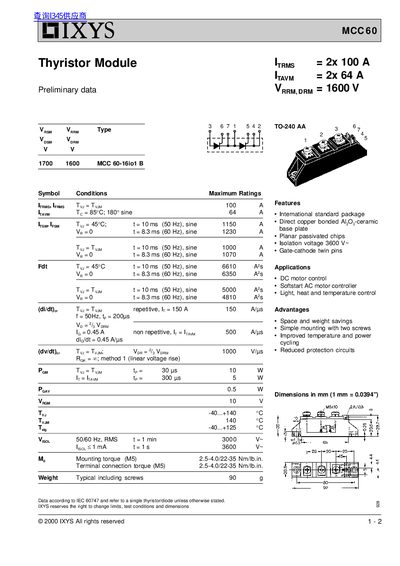

This document provides preliminary technical data for the IXYS MCC60 thyristor module. It covers key features such as international standard packaging, direct copper bonding to an Al2O3-ceramic base plate, and planar passivated chips. The module is designed for applications including DC motor control, soft-start AC motor controllers, and light, heat, and temperature control systems.
| RMS Current (ITRMS) | 2 x 100 A |
|---|---|
| Average Forward Current (ITAVM) | 2 x 64 A |
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Isolation Voltage | 3600 V~ |
| Mounting Torque (M5) | 2.5-4.0 Nm |
| Weight | 90 g |
The module is suitable for DC motor control, soft-start AC motor controllers, and light, heat, and temperature control.
The junction temperature (TVJ) ranges from -40°C to +140°C, while the storage temperature (Tstg) is between -40°C and +125°C.
The maximum allowable acceleration for the module is 50 m/s².
