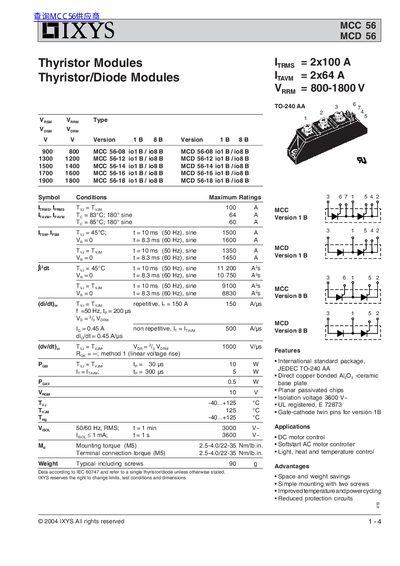

This document is the datasheet of MCC 56 MCD 56 419, a double thyristor/double diode module with ITRMS = 2x100 A, ITAVM = 2x64 A and VRRM = 800-1800 V.
This document provides a comprehensive technical overview of the IXYS MCC 56 and MCD 56 series Thyristor/Diode Modules. It covers international standard packaging (JEDEC TO-240 AA) with direct copper bonded ceramic base plates and planar passivated chips.
The datasheet details maximum ratings including RMS currents up to 100 A, surge capabilities, and isolation voltages of 3600 V~. It also presents characteristic values for gate trigger characteristics, thermal resistance (RthJC), and transient thermal impedance, alongside mechanical dimensions and mounting torque specifications.
| RMS Current (ITRMS) | 100 A |
|---|---|
| Average Forward Current (ITAVM) | 64 A |
| Surge Current (ITSM) | 1500 A |
| Isolation Voltage (VISOL) | 3600 V~ |
| Thermal Resistance Junction-to-Case (RthJC) | 0.45 K/W |
| Package Type | JEDEC TO-240 AA |
These modules are designed for DC motor control, softstart AC motor controllers, and light, heat, and temperature control.
The recommended mounting torque (M5) is between 2.5-4.0 Nm or 22-35 lb.in.
