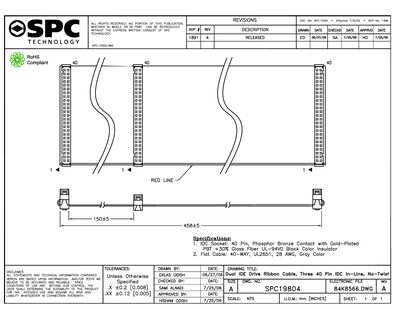

This one‑page data sheet from SPC provides revision information, copyright notice, and technical specifications for the SPC19804 connector assembly. It includes details on the IDC socket and the flat cable used in the product.
Key specifications are given for the IDC socket (40‑pin, phosphor bronze contacts with gold plating) and the flat cable (40‑way, UL2651, 28 AWG). The document also notes RoHS compliance and drawing references.
| IDC Socket | 40 Pin, Phosphor Bronze Contact with Gold‑Plated, PBT +30% Glass Fiber, UL‑94VO, Black |
|---|---|
| Flat Cable | 40‑WAY, UL2651, 28 AWG, Gray |
The document is for the SPC19804 part.
It is a 40‑pin socket with phosphor bronze contacts, gold plating, PBT +30% glass fiber, UL‑94VO rating, and a black insulator.
The flat cable is 40‑way, UL2651 rated, 28 AWG, and gray in color.
