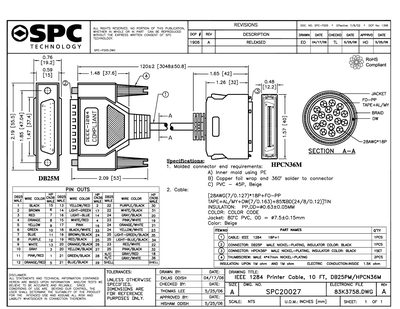

This guide details the technical specifications of the SPC20027 printer cable, including connector types, wire colors, and material tolerances. It also lists revision history and compliance information.
Key sections cover pin‑out diagrams, cable construction, wire‑color codes, insulation materials, and connector finishing. The document is intended for engineers and technicians selecting the appropriate cable for IEEE 1284 printer applications.
| Cable length | 10 FT |
|---|---|
| Connector type | DB25P male nickel‑plating |
| Insulation material | PP (polypropylene) |
| Wire gauge | 7/0.127 |
| Cable color | Beige |
The model number is SPC20027.
The cable is 10 ft long.
It uses a DB25P male nickel‑plated connector.
The insulation is made of polypropylene (PP).
