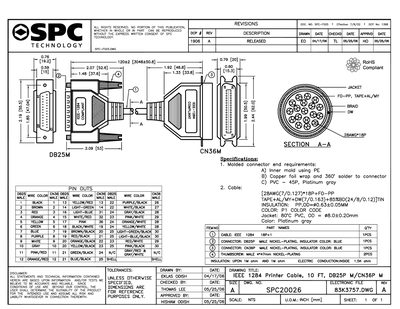

This selection guide provides the technical details for the SPC TA‑SPC20026 connector cable, including connector types, wire gauges, and material requirements. It is intended to help engineers choose the correct cable for their applications.
The document lists molded connector end requirements, pin‑out tables, cable construction, wire‑color codes, and connector finishes. All specifications are presented with reference drawings and compliance notes.
| Connector type | DB25, CN36 |
|---|---|
| Cable gauge | 28 AWG |
| Insulation material | PVC, Platinum gray |
| Mold material | PE (polyethylene) |
| Copper foil wrap | 360° solder to connector |
The cable uses DB25 and CN36 male connectors with nickel plating.
The cable is specified with 28 AWG conductors.
