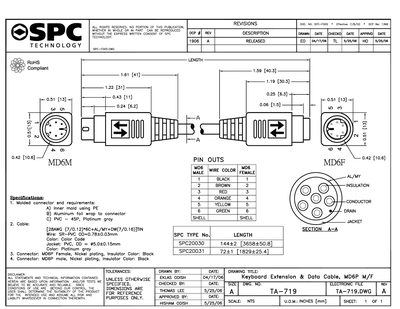

The SPC20030 data sheet lists the revision history, drawing numbers, and RoHS compliance for the cable assembly. It includes detailed wire‑color codes, cable construction, and connector specifications.
Key features include a molded connector end with PE inner mold, aluminum foil wrap, and PVC jacket, as well as the MD6P female and male connectors with nickel plating and black insulators. Wire dimensions, material (SR‑PVC), and overall length are also documented.
| RoHS compliance | Compliant |
|---|---|
| Wire color 1 | Black |
| Wire color 2 | Brown |
| Wire color 4 | Orange |
| Wire color 5 | Yellow |
| Cable type | 2BAWG (7/0.12)*6C+AL/MY+DW(7/0.16) |
| Wire material | SR‑PVC OD=0.78±0.03 mm |
| Connector (female) | MD6P, nickel plating, black insulator |
| Connector (male) | MD6P, nickel plating, black insulator |
Yes, the SPC20030 cable is listed as RoHS compliant.
