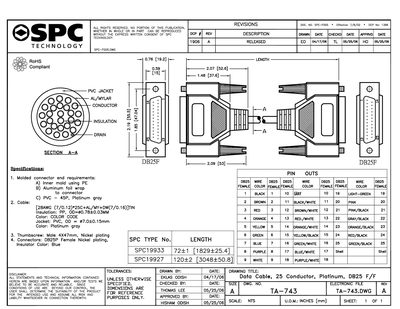

The document is a technical data sheet for the SPC19933 cable assembly. It lists revisions, compliance information, and detailed construction data for the cable intended for data transmission applications.
Key specifications include connector type, conductor size, insulation material, jacket material, and color coding. The sheet also contains tolerances, drawing references, and a disclaimer regarding the use of the product.
| Connector type | DB25F female, nickel plating |
|---|---|
| Number of conductors | 25 |
| Conductor size | 28 AWG (7/0.12) |
| Insulation material | PP |
| Jacket material | PVC |
| Color code (plating) | Platinum gray |
It uses a DB25F female connector with nickel plating.
The cable has 25 conductors.
The jacket is made of PVC.
The conductors are 28 AWG.
