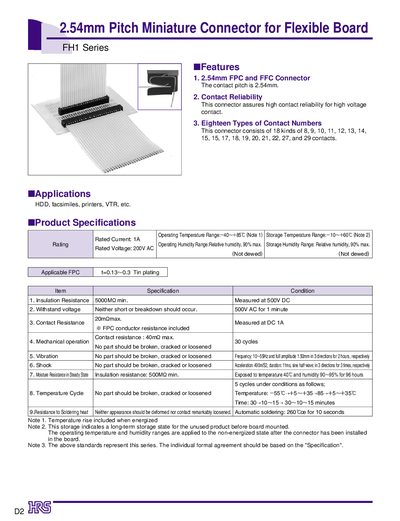

This is a PDF document about D2 2.54mm Pitch Miniature Connector for Flexible Board FH1 Series. The connector has a contact pitch of 2.54mm and ensures high contact reliability for high voltage contact. It is available in 18 different contact numbers. The product specifications include rated current, operating temperature range, rated voltage, etc. It is suitable for applications such as HDD, facsimiles, printers, VTR, etc.
The FH1 series offers a 2.54 mm pitch FPC/FFC connector with a variety of contact counts (8‑29) and a right‑angle or straight type configuration. It is designed for applications such as HDDs, printers, facsimiles, and VTRs, delivering high contact reliability for up to 200 V AC.
Key electrical and environmental specifications include a rated current of 1 A, operating temperature from –40 °C to +85 °C, and humidity tolerance up to 90 % RH. The connector uses a PBT insulator and phosphor‑bronze contacts with tin plating, and meets stringent insulation resistance and vibration requirements.
| Contact pitch | 2.54 mm |
|---|---|
| Rated current | 1 A |
| Rated voltage | 200 V AC |
| Operating temperature range | -40 °C to +85 °C |
| Operating humidity range | 90 % max |
| Insulation resistance | 5000 MΩ min |
| Contact resistance | 20 mΩ max |
| Withstand voltage | 500 V AC for 1 minute |
| Vibration frequency | 10‑55 Hz |
| Shock acceleration | 490 m/s² |
| Insulator material | PBT |
| Contact material | Phosphor bronze (tin plated) |
The FH1 connector is rated for 1 A of current and 200 V AC.
It operates from –40 °C to +85 °C and can handle up to 90 % relative humidity.
The series includes 18 different contact counts ranging from 8 to 29 contacts.
The insulator is made of PBT and the contacts are phosphor bronze with a tin plating.
