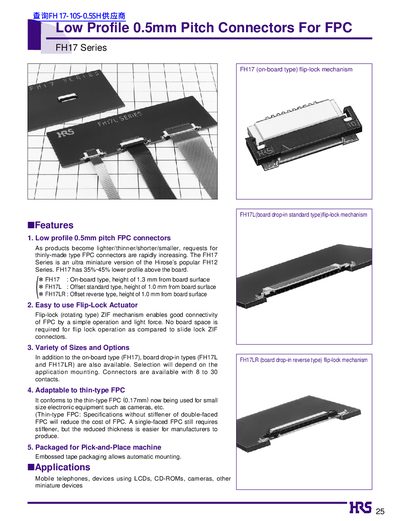

Hirose FH17 Series Low Profile 0.5mm Pitch Connectors Datasheet
The FH17 Series represents an ultra-miniature version of Hirose's popular FH12 Series, designed for thin-type FPCs (0.17mm) used in mobile telephones, LCD devices, and cameras. The series features a flip-lock ZIF mechanism and is available in three mounting types: On-board (FH17), Offset standard (FH17L), and Offset reverse (FH17LR). These connectors offer a significantly lower profile above the board compared to previous generations, with heights ranging from 1.0 mm to 1.3 mm depending on the type.
The document provides comprehensive technical data including electrical ratings (50V AC, 0.4A DC), environmental specifications (operating temperature -40 to +70°C), and mechanical dimensions for various contact counts (8 to 30). It also includes recommended land and metal mask dimensions for PCB design, soldering temperature profiles, and construction guidelines for compatible single-sided and double-sided FPCs.
HRS FH1 specifications
| Pitch | 0.5mm |
|---|---|
| Current Rating | 0.4A DC |
| Voltage Rating | 50V AC |
| Insulation Resistance | 500M ohms minimum |
| Withstanding Voltage | 150V AC/1 minute |
| Contact Resistance | 50m ohms maximum |
| Packaging | Embossed tape reel |
Source: Hirose FH17 Series Low Profile 0.5mm Pitch Connectors Datasheet
All HRS FH1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available mounting types for the FH17 Series?
The series includes On-board type (FH17), Offset standard type (FH17L), and Offset reverse type (FH17LR).
From: Hirose FH17 Series Low Profile 0.5mm Pitch Connectors Datasheet
What is the height of the FH17L connector from the board surface?
The FH17L (Offset standard type) has a height of 1.0 mm from the board surface.
From: Hirose FH17 Series Low Profile 0.5mm Pitch Connectors Datasheet
What is the rated current and voltage of the FH1 connector?
The FH1 connector is rated for 1 A of current and 200 V AC.
From: HRS 2.54mm Pitch Miniature Connector for Flexible Board FH1 Series
What are the operating temperature and humidity limits?
It operates from –40 °C to +85 °C and can handle up to 90 % relative humidity.
From: HRS 2.54mm Pitch Miniature Connector for Flexible Board FH1 Series
What is the maximum current rating of the FH19C/FH19SC connectors?
The connectors are rated for up to 0.5 A DC.
What packaging format are the connectors supplied in?
They are supplied on embossed tape reels containing 5,000 pieces each.
