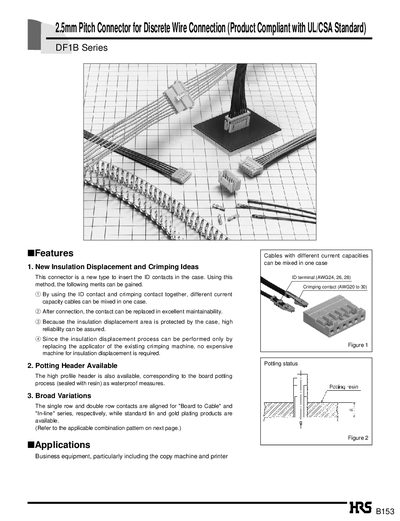

Introduces the characteristics of B153 2.5mm Pitch Connector for Discrete Wire Connection (Product Compliant with UL/CSA Standard) DF1B Series, including novel insulation displacement and crimping ideas, waterproof measures, and broad variations.
The HRS DF1B Series is a 2.5mm pitch connector designed for discrete wire connections compliant with UL/CSA standards. It utilizes a new Insulation Displacement (ID) contact method that allows different current capacity cables to be mixed within a single case while ensuring high reliability and excellent maintainability.
| Pitch | 2.5mm |
|---|---|
| Operating Temperature Range | -35 to +85°C |
| Voltage Rating | 250V AC |
| Insulation Resistance | 1000M ohms Min |
| Contact Resistance | 30m ohms Max |
No, only the applicator of an existing crimping machine needs to be replaced.
The socket insulator is made of Polyamide with a white color and UL94V-0 rating.
