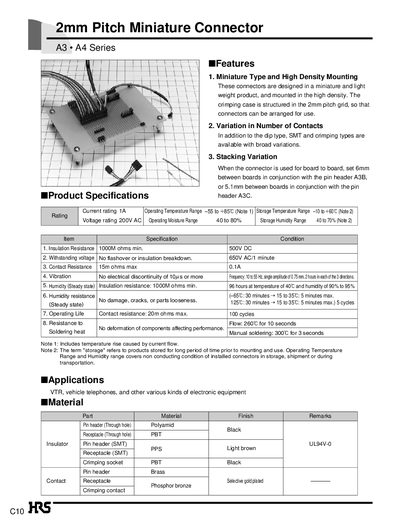

C10 2mm Pitch Miniature Connector A3 • A4 Series is a connector made by Hioki that features a small, lightweight design and high-density mounting. The connector supports DIP, SMT, and crimp types, and can be stacked as needed.
The HRS A3 and A4 series are miniature and lightweight connectors designed for high-density mounting with a 2mm pitch. They are available in various configurations including DIP types (pin headers and receptacles), SMT types, and crimping sockets to suit different application needs.
Key specifications include a current rating of 1A and an operating temperature range of -55°C to +85°C. The connectors feature materials such as Polyamid for pin headers and PBT or PPS for receptacles, with selective gold plating on contacts.
| Pitch | 2mm |
|---|---|
| Current Rating | 1A |
| Operating Temperature Range | -55 to +85°C |
| Voltage Rating | 200V AC |
| Insulation Resistance | 1000M ohms min. |
| Withstanding Voltage | 650V AC/1 minute |
The connectors operate between -55 and +85°C.
The maximum contact resistance is 15m ohms.
