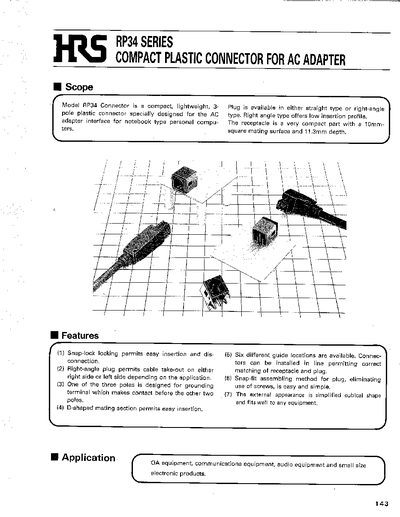

The HRS RP34 Series is a compact, lightweight 3-pole plastic connector specifically designed for the AC adapter interface of notebook-type personal computers. It is available as either a straight type or a right-angle plug, with the latter offering a low insertion profile suitable for various cable take-out directions.
| Number of poles | 3 or 4 |
|---|---|
| Withstanding voltage | 150V AC (1 min) |
| Current capacity | 3A |
| Insulation resistance | 1,000MΩ Min (DC 100V) |
| Contact resistance | 30mΩ Max (DC 100V) |
| Applicable cable AWG | #18~#22 |
The voltage rating for normal use is 30VAC or 42VDC and under.
The proper tool RP34-TC-01 is used to crimp the fitting bracket to the cable.
