The HIF3FB and HIF3FC series are A106 2.54mm pitch low profile connectors. The HIF3FC series takes complete flux tight measures, while the pin header of the HIF3FB series is a low profile of height 9.2mm. They are suitable for computers, termination equipment, various kinds of electronic equipment, office automation machines, and more.

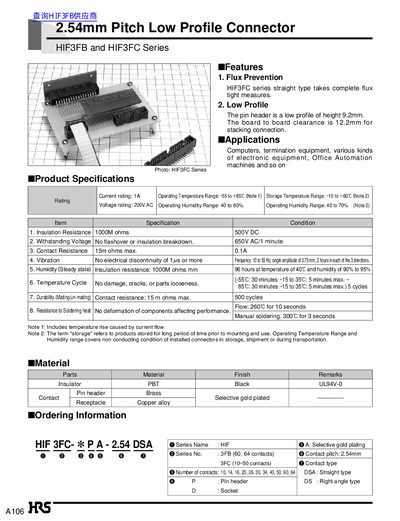

This document provides technical data for the HRS HIF3FB (straight type) and HIF3FC (right angle type) series of 2.54mm pitch low profile connectors. The product features flux prevention measures and is designed for applications in computers, termination equipment, and office automation machines.
| Pitch | 2.54mm |
|---|---|
| Current rating | 1A |
| Operating Temperature Range | -55 to +85°C |
| Insulation Resistance | 1000M ohms min |
| Withstanding Voltage | 650V AC/1 minute |
The pin header has a low profile height of 9.2mm.
The connector maintains contact resistance after 500 cycles of mating and un-mating.
The operating temperature range is from -55 to +85 degrees Celsius.
