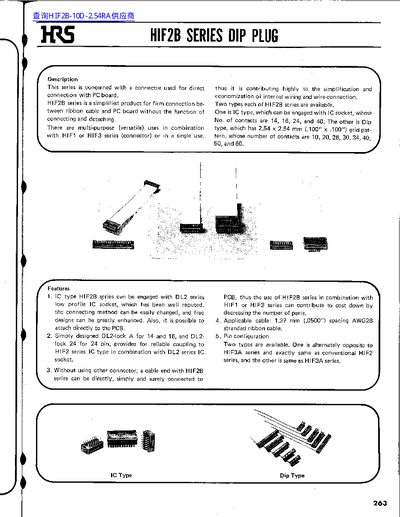

This document describes the HRS HIF2B series of connectors designed for direct connection to PC boards. The series is available in two main types: an IC type suitable for engagement with DL2 series low profile IC sockets (14, 16, 24, and 40 pins) and a Dip type featuring a 2.54mm grid pattern with various pin counts ranging from 10 to 60.
| Contact Pitch | 2.54mm (.100 inch) |
|---|---|
| Applicable Cable Spacing | 1.27 mm (.0500") spacing |
| Current Capacity | 1A |
| Rated Voltage (AC) | 200V |
| Insulation Resistance | 1000MΩ or higher |
| Withstand Voltage (AC) | 1500Vrms |
| Contact Resistance | 15mΩ or less |
| Contact Material | Beryllium copper |
The contact pitch is 2.54mm (.100 inch).
The connector applies to 1.27 mm spacing AWG28 stranded ribbon cable.
The connector has a rated voltage of AC 200V.
The connector supports a current capacity of 1A.
