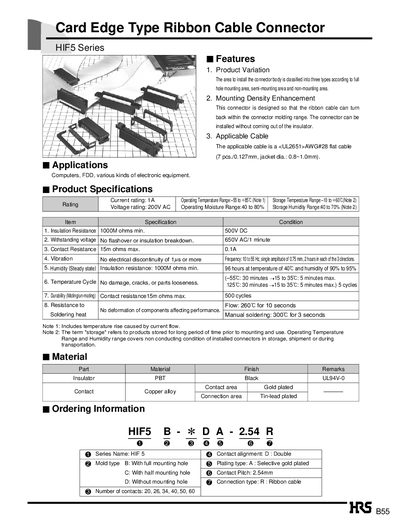

The B55 Card Edge Type Ribbon Cable Connector HIF5 Series is a connector with the following features: 1. Product Variation: The area to install the connector body is classified into three types according to full hole mounting area, semi-mounting area and non-mounting area. 2. Mounting Density Enhancement: This connector is designed so that the ribbon cable can turn back within the connector molding range. The connector can be installed without coming out of the insulator. 3. Applicable Cable: The applicable cable is a
The HIF5 series from HRS provides a card‑edge type ribbon cable connector designed for computer, FDD, and various electronic equipment. It supports three mounting configurations—full hole, half‑mount, and non‑mount—and allows the ribbon cable to bend back within the molding range.
Technical specifications include a 1 A plating current rating, operating temperature from –55 °C to +85 °C, 200 V AC voltage rating, and durability up to 500 mating cycles. Materials feature a PBT black insulator (UL94V‑0) and gold‑plated copper contacts, with a standard 2.54 mm contact pitch and options for 20, 26, 34, 40, 50, or 60 contacts.
| Plating current rating | 1 A |
|---|---|
| Operating Temperature Range | -55 °C to +85 °C |
| Storage Temperature Range | 10 °C to +60 °C |
| Voltage rating | 200 V AC |
| Insulation Resistance | 1000 MΩ min at 500 V DC |
| Withstanding voltage | 650 V AC for 1 min |
| Contact Resistance | 15 mΩ max at 0.1 A |
| Durability (mating cycles) | 500 cycles |
| Soldering heat limit | 300 °C for 3 s |
| Insulator material | PBT black (UL94V‑0) |
| Contact material | Copper alloy, gold plated |
| Connection type | Ribbon cable |
| Contact pitch | 2.54 mm |
The connector body can be installed in three ways: full‑hole mounting, half‑mounting, or without any mounting hole.
The series is available with 20, 26, 34, 40, 50, or 60 contacts.
The plating current rating is 1 A.
