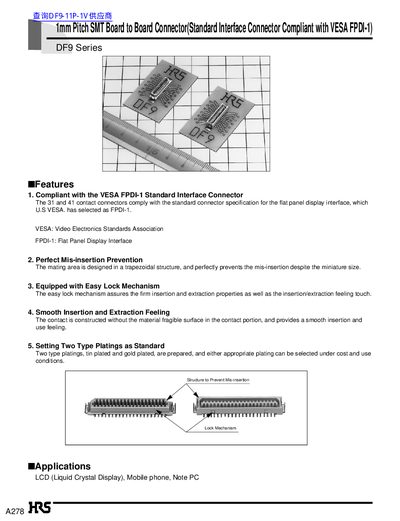

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
The document describes the Hirose DF9 Series connectors as standard interface connectors compliant with the VESA FPDI-1 specification. Key design features include a trapezoidal mating area for perfect mis-insertion prevention and an easy lock mechanism to ensure firm insertion and extraction properties. The series offers two types of plating options: tin plated and gold plated, selected based on cost and usage conditions.
| Current rating | 0.5A |
|---|---|
| Operating Temperature Range | -45 to +125°C |
| Voltage rating | 150V AC |
| Insulation Resistance | 500M ohms min. |
| Contact Resistance | 50m ohms max. |
The connectors comply with the VESA FPDI-1 Standard Interface Connector specification.
Two types of platings are prepared as standard: tin plated and gold plated.
The contact pitch for this series is 1mm.
