A110 2.54mm Pitch Board to Board Connector HIF3H Series is a product from Hiscotch. It can be used for board to board horizontal or vertical connection, and is compatible with other HIF3H series products.

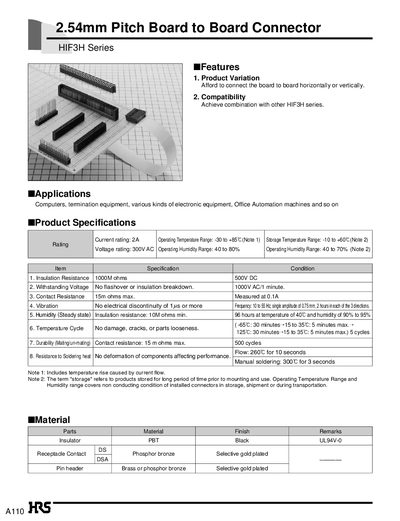

This document provides technical details for the HRS HIF3H series of 2.54mm pitch board-to-board connectors. It covers applications in computers and electronic equipment, along with key features such as compatibility within the series and specific product variations for horizontal or vertical connection.
The datasheet includes comprehensive product specifications regarding electrical ratings (current up to 2A, voltage up to 300V AC), environmental operating ranges, and mechanical durability tests. It also lists detailed ordering information for various pin headers and receptacles in straight and right-angle configurations.
| Current rating | 2A |
|---|---|
| Voltage rating | 300V AC |
| Operating Temperature Range | -30 to +85°C |
| Insulation Resistance | 1000M ohms |
| Withstanding Voltage | 1000V AC/1 minute |
| Contact Resistance | 15m ohms max. |
The product has a current rating of 2A.
Connectors can operate between -30°C and +85°C.
The contact resistance must be a maximum of 15m ohms.
