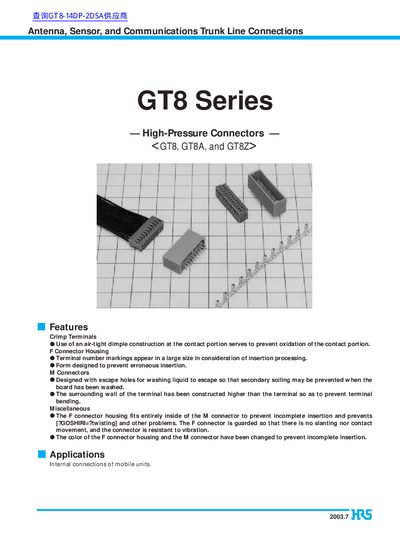

This document describes the features and characteristics of GT8 series high-pressure connectors, including anti-oxidation design, shape design to prevent erroneous insertion, escape holes design to prevent secondary soiling, higher surrounding wall design to prevent terminal bending, etc.
This document provides technical details for the Hirose Electric GT8 Series of high-pressure connectors, specifically models GT8, GT8A, and GT8Z. It covers features such as crimp terminals with air-tight dimple construction to prevent oxidation and housing designs that prevent erroneous insertion or terminal bending.
The datasheet lists specific part numbers for F Connectors (without flange) and M Connectors (board type), detailing materials like phosphor bronze and PBT, along with dimensions and packaging information. It also includes specifications for termination tools used with these connectors.
| Contact Portion Construction | air-tight dimple construction |
|---|---|
| F Connector Housing Feature | prevents erroneous insertion |
| M Connector Escape Holes | escape holes for washing liquid |
| Standard Capacitor Value (GT8C) | 1,000 pF |
The standard capacitor value is 1,000 pF.
