The document describes the features and characteristics of the RP34L series receptacles, including low installation height, space saving, snap-lock mechanism, precise connection, sequence mating, no mismating, and ease of mating.

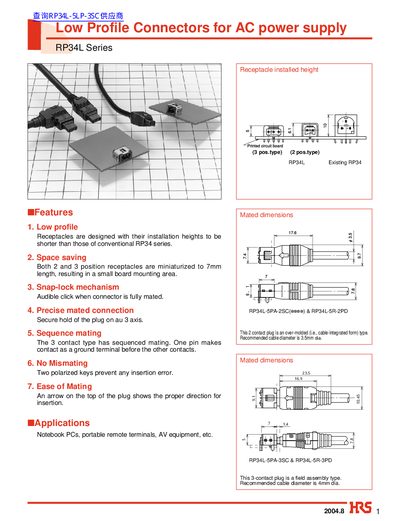

This document provides technical specifications, dimensions, and ordering information for the HRS RP34L Series of low profile connectors. The series includes both 2-position and 3-position receptacles designed with a reduced installation height compared to conventional models.
Key features include a space-saving design with miniaturized lengths of 7mm, a snap-lock mechanism providing an audible click upon mating, and precise connection on three axes. The 3-contact type utilizes a sequenced mating process where the ground terminal connects first. Two polarized keys prevent mismating errors.
| Contact resistance | 30mΩ or max. at 1A DC |
|---|---|
| Insulation resistance | 1000MΩ min. at 100V DC |
| Withstanding voltage | 150V AC/1 minute |
| Operating temperature range | -25°C to +85°C |
| Voltage rating (AC) | 30V AC |
| Durability | 5,000 mating / un-mating cycles |
They are suitable for notebook PCs, portable remote terminals, and AV equipment.
Two polarized keys are used to prevent any insertion error.
