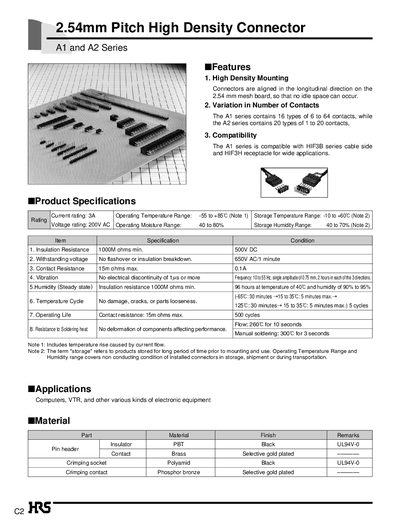

C2 2.54mm Pitch High Density Connector A1 and A2 Series is a high density connector from Fuji. It features connectors aligned in the longitudinal direction on the 2.54 mm mesh board, so that no idle space can occur. The A1 series contains 16 types of 6 to 64 contacts, while the A2 series contains 20 types of 1 to 20 contacts. The A1 series is compatible with HIF3B series cable side and HIF3H receptacle for wide applications.
The HRS A1 and A2 Series are high-density mounting connectors designed for use on 2.54 mm mesh boards to eliminate idle space. The A1 series offers configurations from 6 to 64 contacts, while the A2 series provides options from 1 to 20 contacts. These connectors feature compatibility with HRS HIF3B and HIF3H cable sides for wide application versatility.
| Contact Pitch | 2.54 mm |
|---|---|
| Current Rating | 3A |
| Operating Temperature Range | -55 to +85°C |
| Voltage Rating | 200V AC |
| Insulation Resistance | 1000M ohms min. |
The connectors are aligned on a 2.54 mm mesh board.
The connectors have a current rating of 3A.
