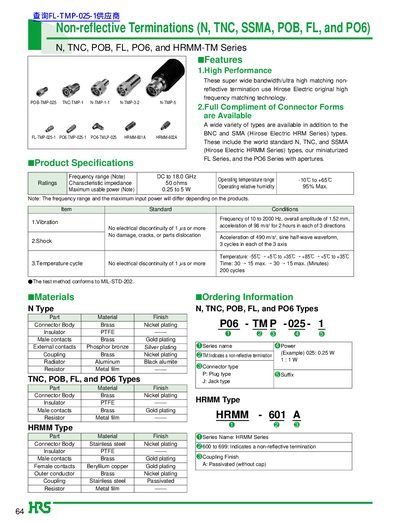

This document introduces Hirose Electric's non-reflective termination products, including N, TNC, SSMA, POB, FL and PO6. The product frequency range is DC to 18.0 GHz, the impedance is 50 ohms, and the maximum input power is 0.25 to 5 W.
This document details the features of Hirose Electric's high-performance non-reflective terminations. The product line includes standard forms such as N, TNC, and SSMA, as well as miniaturized FL Series and aperture-equipped PO6 Series connectors.
The specifications cover frequency ranges up to 18.0 GHz, characteristic impedance of 50 ohms, and maximum usable power ratings. Detailed tables provide VSWR data across various frequencies for specific part numbers like N-TMP-1-1, TNC-TMP-1, and HRMM-601A.
| Characteristic impedance | 50 ohms |
|---|---|
| Frequency range (N-TMP-1-1) | DC to 8.0 GHz |
| Maximum usable power (PO6 series) | up to 5W |
The maximum usable input power ranges from 0.25 W to 5 W depending on the specific product.
The HRMM-601A and HRMM-602A models operate from DC to 18 GHz.
