H/MS Series connector with 20% height reduction, 360° cable exit direction, simple assembly, IP67 protection, etc., Suitable for factory automation equipment, robot equipment, servo motors and various industrial and measuring instruments.

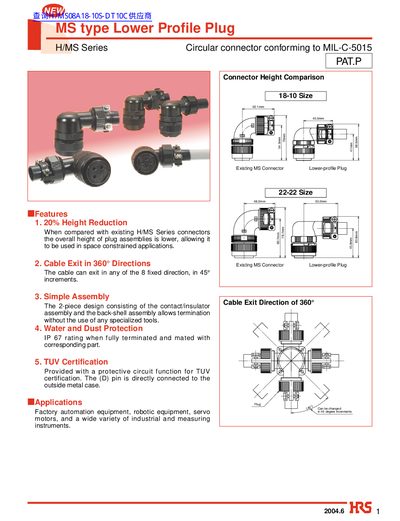

This document introduces the H/MS Series of circular multi-contact connectors developed by HIROSE ELECTRIC CO.,LTD. These connectors comply with MIL-C-5015 requirements and are designed for applications in factory automation, robotics, and industrial instruments.
Key features highlighted include a 20% height reduction compared to existing models, allowing use in space-constrained areas, and the ability for cables to exit in any of 8 fixed directions. The connectors offer IP67 water and dust protection when fully terminated and mated.
| Voltage rating (Pollution degree: 3) | 250VAC, 250V DC |
|---|---|
| Operating temperature range | -25 to +125 °C |
| Current rating (18-10 size) | 23A Max. |
| Contact resistance | 3 m ohms max. |
The maximum current rating is 23A.
The operating temperature range is from -25 to +125 degrees Celsius.
