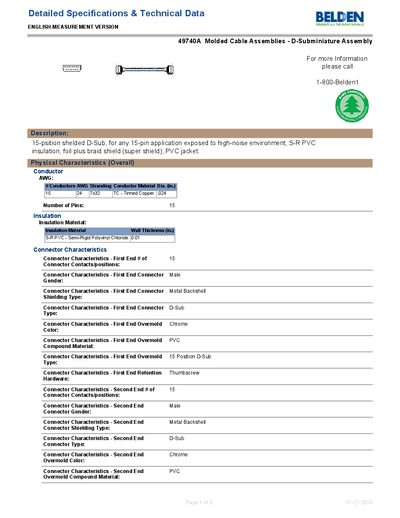

15-psition shelded D-Sub, for any 15-pin application exposed to high-noise environment, S-R PVC insulation, foil plus braid shield (super shield), PVC jacket.
The 49740A is a 15‑pin molded D‑Subminiature cable assembly designed for high‑noise environments. It features semi‑rigid PVC insulation, foil plus braid shielding, and a PVC overmold on both connector ends.
Key data include a 0.300 in. overall nominal diameter, 5 in. length, 300 V RMS UL rating, 80 °C temperature rating, and compliance with RoHS, WEEE and other EU directives. The assembly is non‑plenum and uses PVC for the outer jacket.
| Number of Pins | 15 |
|---|---|
| Conductor | 7x32 TC - Tinned Copper |
| Insulation Material | S‑R PVC (Semi‑Rigid Polyvinyl Chloride) |
| Overmold Material | PVC |
| Overall Nominal Diameter | 0.300 in. |
| Assembly Length | 5 |
| Outer Jacket Material | PVC (Polyvinyl Chloride) |
| Max Operating Voltage (UL) | 300 V RMS |
| UL Temperature Rating | 80 °C |
| Plenum Rating | No |
The UL temperature rating is 80 °C.
No, it is not rated for plenum use.
The outer jacket is made of PVC (Polyvinyl Chloride).
The maximum operating voltage is 300 V RMS.
