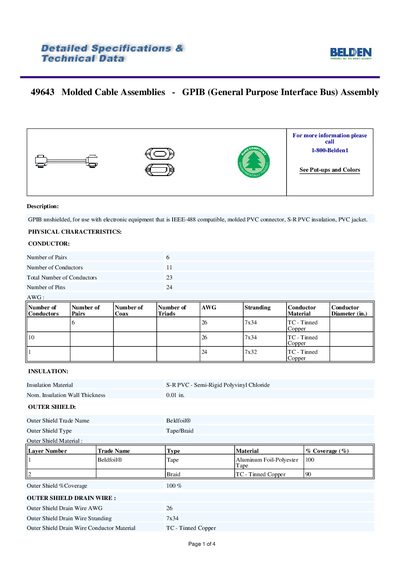

49643 Molded Cable Assemblies - GPIB (General Purpose Interface Bus) Assemblies for use with electronic equipment that is IEEE-488 compatible, with molded PVC connector, S-R PVC insulation and PVC jacket.
The 49643 Molded Cable Assembly is a GPIB (General Purpose Interface Bus) cable designed for IEEE‑488 compatible electronic equipment. It features a molded PVC connector, semi‑rigid PVC insulation, and a 24‑pin stackable ribbon connector on both ends, with male/female gender and thumbscrew retention hardware.
The cable complies with UL Style 2464 (300 V, 80 °C), is EU RoHS compliant, and includes detailed dimensions such as a .350 in overall diameter and a 6.6 ft length. Physical characteristics include 23 conductors, 24 pins, and an outer shield made of Beldfoil® tape and tinned‑copper braid.
| Total Number of Conductors | 23 |
|---|---|
| Number of Pins | 24 |
| Outer Shield Drain Wire AWG | 26 |
| Maximum Operating Voltage | 300 V RMS |
| Overall Nominal Diameter | 0.350 in |
| UL Temperature Rating | 80°C |
| Insulation Material | S‑R PVC (Semi‑Rigid Polyvinyl Chloride) |
It uses a stackable ribbon connector with 24 contacts, male/female gender, and thumbscrew retention hardware on both ends.
The cable is rated for a maximum operating voltage of 300 V RMS according to UL specifications.
Yes, the cable meets EU RoHS compliance requirements.
The assembly length is 6.6 ft.
