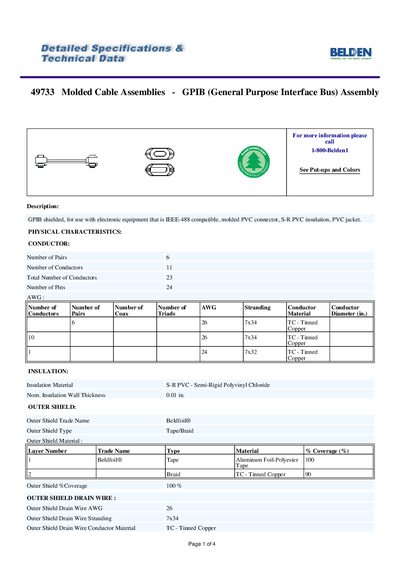

49733 Molded Cable Assemblies - GPIB (General Purpose Interface Bus) Assembly is a shielded cable assembly that is IEEE-488 compatible and features PVC connectors, S-R PVC insulation, and PVC jackets.
The Belden 49733 is a shielded GPIB (General Purpose Interface Bus) cable assembly with molded PVC connectors, designed for IEEE‑488 compatible electronic equipment. It features a semi‑rigid PVC insulation, a Beldfoil® outer shield, and a PVC outer jacket.
Key specifications include 23 conductors (6 pairs), 24 pins, a maximum operating voltage of 300 V RMS, and UL‑rated temperature of 80 °C. The cable complies with NEC/UL and EU RoHS standards and is available in a gray, gull‑colored jacket.
| Total Number of Conductors | 23 |
|---|---|
| Number of Pairs | 6 |
| Outer Shield Trade Name | Beldfoil® |
| Outer Shield Material (Tape) | Aluminum Foil‑Polyester |
| Outer Shield Material (Braid) | TC - Tinned Copper |
| Insulation Material | S‑R PVC (Semi‑Rigid Polyvinyl Chloride) |
| Maximum Operating Voltage | 300 V RMS |
| UL Temperature Rating | 80 °C |
The cable has a total of 23 conductors.
The outer shield consists of Beldfoil® tape made of aluminum foil‑polyester and a braid of tinned copper.
It is rated for a maximum operating voltage of 300 V RMS.
