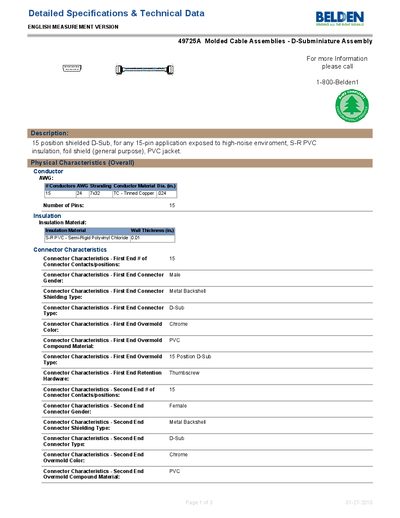

15-position shielded D-Sub, for any 15-pin application exposed to high-noise enviroment, S-R PVC insulation, foil shield (general purpose), PVC jacket.
The 49725A molded cable assembly from Belden provides a 15‑position shielded D‑Sub connector suitable for high‑noise environments. It features semi‑rigid PVC insulation, a foil shield, and a PVC jacket, with tinned copper conductors (24 AWG) and a chrome overmold on the male connector.
The assembly complies with UL Style 2464 (300 V, 80 °C), EU RoHS and WEEE directives, and is not rated for plenum use. It ships in a 0.284 in. nominal diameter, 5‑inch length, and includes thumbscrew retention on both ends.
| Number of Pins | 15 |
|---|---|
| Insulation Material | S‑R PVC – Semi‑Rigid Polyvinyl Chloride |
| Outer Shield Material | Beldfoil® Tape – Aluminum Foil‑Polyester Tape |
| Outer Jacket Material | PVC – Polyvinyl Chloride |
| Overall Nominal Diameter | 0.284 in. |
| Assembly Length | 5 in. |
| UL Temperature Rating | 80 °C (UL AWM Style 2464) |
| Maximum Operating Voltage (UL) | 300 V RMS |
| Plenum Rating | No |
| Retention Type | Thumbscrew |
The maximum operating voltage is 300 V RMS according to UL Style 2464.
Yes, the product complies with the EU RoHS Directive (2002/95/EC).
It has 15 pins.
