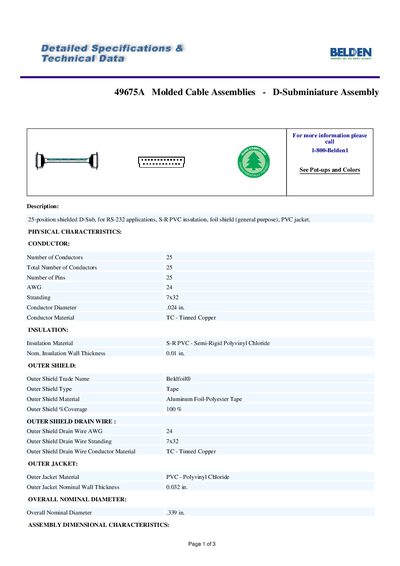

This document describes the 49675A Molded Cable Assemblies. The assembly is a 25-position shielded D-Sub for RS-232 applications, with S-R PVC insulation, foil shield (general purpose), and PVC jacket. The document provides detailed information about the physical characteristics, assembly dimensions, and connector characteristics of the assembly.
The 49675A Molded Cable Assembly is a 25‑position shielded D‑Sub cable designed for RS‑232 applications. It features semi‑rigid PVC insulation, a foil‑shielded outer jacket, and metal backshell connectors with chrome overmold.
The document provides physical, mechanical, electrical, and compliance specifications, including conductor details, connector genders, UL temperature rating, and EU RoHS compliance. It also lists dimensional data, plenum rating, and handling notes for EMI/RFI protection.
| Number of Conductors | 25 |
|---|---|
| Insulation Material | S‑R PVC (Semi‑Rigid Polyvinyl Chloride) |
| Outer Shield Type | Tape (Aluminum Foil‑Polyester) |
| Overall Nominal Diameter | .339 in. |
| Maximum Operating Voltage | 300 V RMS (UL) |
| Cable Length | 25 ft |
| Plenum Rating | N (non‑plenum) |
| UL Temperature Rating | 80°C |
| Connector Gender (First End) | Male |
| Connector Gender (Second End) | Female |
The cable is rated for a maximum operating voltage of 300 V RMS according to UL specifications.
No, the cable is not plenum rated (Plenum = N).
It has 25 conductors and 25 pins.
The cable uses a foil shield with 100 % coverage of aluminum‑foil polyester tape.
