The product is 49734 Molded Cable Assemblies, a GBIF shielded cable assembly for use with electronic equipment that is IEEE-488 compatible, molded PVC connector, S-R PVC insulation and PVC jacket.

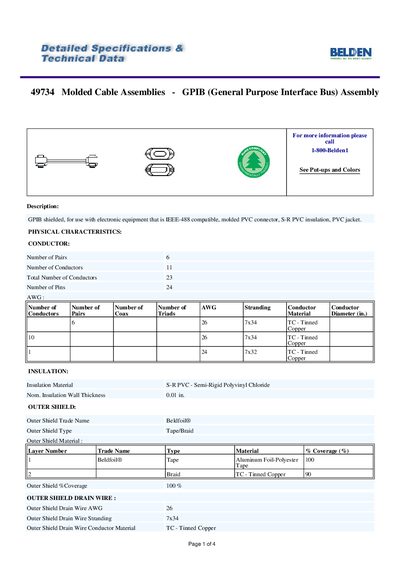

The Belden 49734 Molded Cable Assemblies handbook describes a GPIB shielded cable with a molded PVC connector, suitable for IEEE‑488 compatible equipment. It lists physical characteristics such as conductor count, insulation material, outer shield construction, and overall dimensions.
Technical data include electrical ratings, mechanical specifications, compliance information, and a wiring diagram with color codes. The document also provides part numbers, weight, and regulatory compliance details.
| Number of Pairs | 6 |
|---|---|
| Total Conductors | 23 |
| Number of Pins | 24 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | S‑R PVC - Semi‑Rigid Polyvinyl Chloride |
| Outer Shield Trade Name | Beldfoil® |
| Outer Shield % Coverage | 100 % |
| Outer Shield Drain Wire AWG | 26 |
| Max Operating Voltage | UL 300 V RMS |
| UL Temperature Rating | 80 °C |
| Plenum Rating | No |
| EU RoHS Compliant | Yes |
The maximum operating voltage is UL 300 V RMS.
It has 23 conductors and 24 pins.
No, it is not plenum rated.
The outer shield consists of a tape layer of aluminum foil‑polyester and a braid of tinned copper.
