This product is a 25-pin shielded D-Sub connector, suitable for RS-232 applications, with S-R PVC insulation, aluminum foil shield (general purpose), PVC jacket.

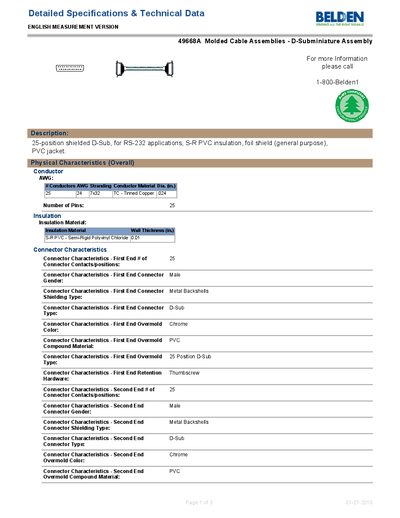

The Belden 49668A is a 25‑position shielded D‑Sub cable assembly designed for RS‑232 applications. It features semi‑rigid PVC insulation, a metal backshell shield, and a chrome‑colored PVC overmold on both male connectors.
The document lists physical dimensions, electrical ratings, and compliance information, including UL temperature rating, maximum operating voltage, and RoHS certification. It also provides part numbers, weight, and packaging details.
| Number of pins | 25 |
|---|---|
| Connector shielding type | Metal Backshells |
| Overall nominal diameter | 0.339 in. |
| Maximum operating voltage | 300 V RMS |
| UL temperature rating | 80 °C |
| RoHS compliance | Yes |
The assembly has 25 pins.
It is rated for 300 V RMS according to UL specifications.
Yes, it complies with the EU RoHS directive (2002/95/EC).
