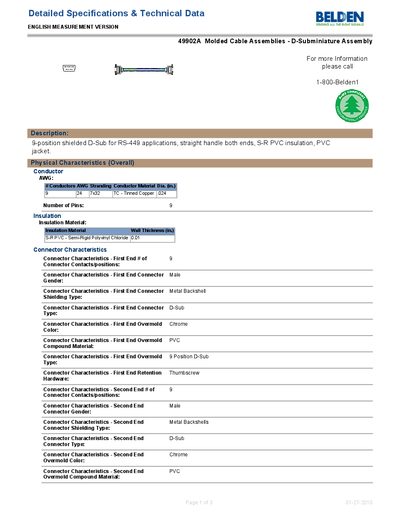

The document describes a 9-position shielded D-Sub connector for RS-449 applications, with straight handles on both ends, S-R PVC insulation, and PVC jacket.
The 49902A is a molded cable assembly featuring a 9‑position shielded D‑Sub connector for RS‑449 applications. It uses 24‑AWG tinned‑copper conductors, semi‑rigid PVC insulation, and a PVC outer jacket, with a nominal diameter of 0.244 in.
The assembly complies with UL AWM Style 2464 (300 V, 80 °C), NEC CM specifications, and EU directives such as RoHS and WEEE. It is not plenum‑rated and includes a Beldfoil® aluminum‑foil/polyester outer shield for EMI/RFI protection.
| Number of Pins | 9 |
|---|---|
| Conductor AWG | 24 |
| Conductor Material | Tinned Copper |
| Insulation Material | S‑R PVC (Semi‑Rigid Polyvinyl Chloride) |
| Outer Jacket Material | PVC (Polyvinyl Chloride) |
| Overall Nominal Diameter | 0.244 in. |
| Maximum Operating Voltage (UL) | 300 V RMS |
| UL Temperature Rating | 80 °C |
| Plenum Rated | No |
| Overmold Color | Chrome |
The 49902A connector has nine pins.
It is rated for up to 300 V RMS according to UL specifications.
No, the assembly is not plenum‑rated.
It complies with UL AWM Style 2464, NEC CM, EU RoHS, EU WEEE, and other applicable directives.
