This product is a shielded cable assembly with 6 pairs, 6 conductors, 23 conductors, 24 pins, and is used with electronic equipment that is IEEE-488 compatible. It has a molded PVC connector, S-R PVC insulation, and a PVC jacket.

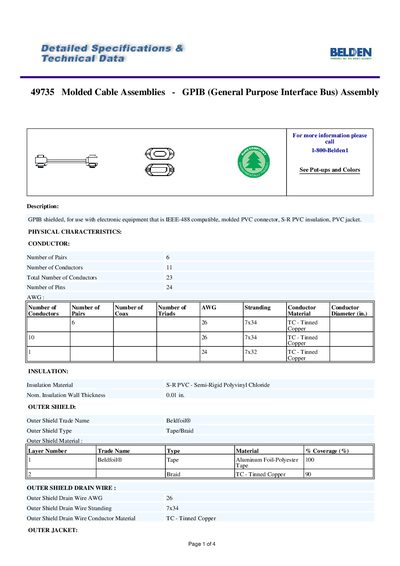

The Belden 49735 Molded Cable Assembly is a GPIB (General Purpose Interface Bus) shielded cable with molded PVC connectors, semi‑rigid PVC insulation, and a PVC outer jacket. It features a dual‑layer shield of aluminum foil and tinned copper braid and is designed for IEEE‑488 compatible electronic equipment.
The assembly includes 23 conductors (6 pairs) with 24‑AWG pins, a .350 in. overall diameter, and a maximum operating voltage of 300 V RMS. It meets UL temperature rating of 80 °C, is UL‑style 2464 compliant, and is EU RoHS certified. Detailed connector characteristics, wiring color codes, and mechanical specifications are provided for proper installation and stacking.
| Number of Conductors | 23 |
|---|---|
| Number of Pairs | 6 |
| AWG (Pin Size) | 24 AWG |
| Outer Jacket Material | PVC (Polyvinyl Chloride) |
| Maximum Operating Voltage | 300 V RMS (UL) |
| Overall Nominal Diameter | 0.350 in. |
| Temperature Rating | 80 °C (UL) |
It uses a stackable ribbon GPIB connector with metal backshells, PVC overmold, and 24 contacts on each end.
The cable is rated for a maximum operating voltage of 300 V RMS according to UL specifications.
Yes, the product is EU RoHS compliant.
The outer jacket is made of PVC (Polyvinyl Chloride).
