The document describes a product called Molded Cable Assemblies 8.7 8. This product is a cable assembly with UL and NEC/(C)UL CEC type certifications. It features shielded conductors and semi-rigid PVC insulation, with a Gull Gray PVC jacket. The product is designed for use with IEEE-488 compatible electronic equipment and offers options for different lengths and connector types.

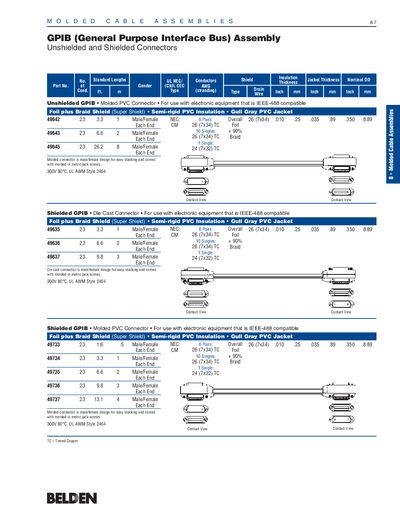

The GPIB (General Purpose Interface Bus) assembly from Belden provides both unshielded and shielded molded PVC connectors designed for IEEE‑488 compatible equipment. Connectors are supplied in male/female pairs and feature metric jack screws for easy stacking.
Key features include a 300 V voltage rating, operation up to 80 °C, UL AWM Style 2464 compliance, and a super‑shield construction using foil plus braid. Various part numbers cover different conductor counts, lengths, and insulation options.
| Maximum Voltage | 300 V |
|---|---|
| Maximum Temperature | 80 °C |
| Connector Design | Male/Female |
| Shield Type | Foil plus Braid (Super Shield) |
| Insulation Material | Semi‑rigid PVC |
The connectors are rated for a maximum of 300 V.
They are rated for operation up to 80 °C.
