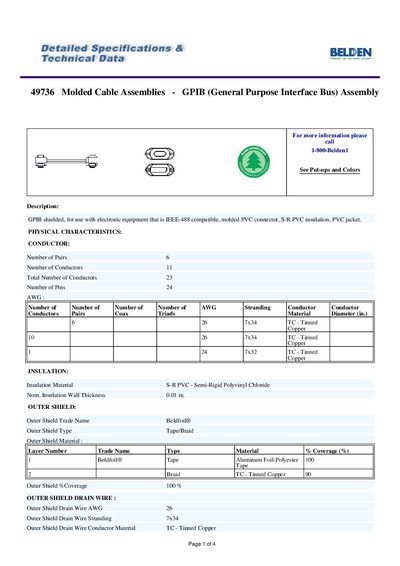

This document describes a GPIB (General Purpose Interface Bus) assembly cable for use with electronic equipment that is IEEE-488 compatible. The cable features GPIB shielding, a molded PVC connector, S-R PVC insulation, and a PVC jacket.
The 49736 Molded Cable Assemblies are shielded GPIB (General Purpose Interface Bus) cables designed for IEEE‑488 compatible electronic equipment. The handbook lists physical, electrical, and mechanical characteristics, as well as connector and wiring information.
Key data include conductor counts, insulation type, outer shield construction, voltage rating, temperature rating, and regulatory compliance such as UL and EU RoHS. The document also provides part numbers, color codes, and packaging details for ordering and reference.
| Number of Pairs | 6 |
|---|---|
| Total Number of Conductors | 23 |
| Number of Pins | 24 |
| Insulation Material | S‑R PVC (Semi‑Rigid Polyvinyl Chloride) |
| Outer Shield Trade Name | Beldfoil® |
| Outer Shield Material | Aluminum Foil‑Polyester tape and tinned copper braid |
| Max Operating Voltage | 300 V RMS |
| UL Temperature Rating | 80 °C |
| EU RoHS Compliant | Yes |
The outer shield consists of Beldfoil® tape made of aluminum foil‑polyester and a braid of tinned copper.
Yes, the cable is EU RoHS compliant.
The cable is rated for a maximum operating voltage of 300 V RMS.
The assembly contains a total of 23 conductors, organized into 6 pairs plus additional conductors.
