This is a molded cable assembly with a 25-pin D-Sub connector for RS-232 applications. The cable uses S-R PVC insulation and has an aluminum foil shield and PVC jacket.

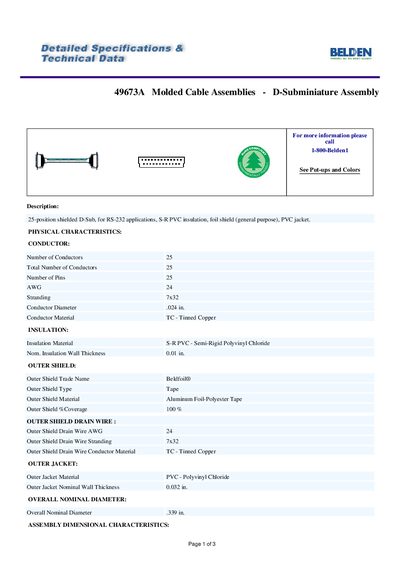

The 49673A molded cable assembly provides a 25‑position shielded D‑Sub connector for RS‑232 applications. It features semi‑rigid PVC insulation, a foil‑shielded outer jacket, and a fully shielded construction to protect against EMI/RFI.
Technical data include conductor details, connector characteristics for both male and female ends, mechanical ratings such as UL 80 °C temperature, and compliance information (UL 300 V RMS, RoHS, EU directives). The document also lists dimensional characteristics, plenum rating, and ordering information.
| UL Temperature Rating | 80 °C |
|---|---|
| Maximum Operating Voltage | 300 V RMS |
| Cable Length | 5 ft. |
| Plenum Rating | No |
| RoHS Compliant | Yes |
The maximum operating voltage is 300 V RMS according to UL AWM Style 2464.
No, the plenum rating is listed as N (not plenum).
The assembly is rated for 80 °C according to UL specifications.
