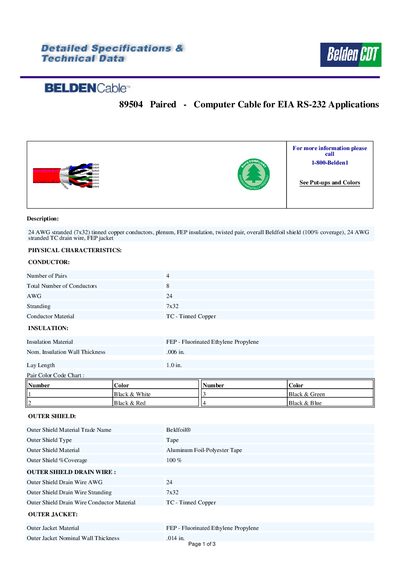

This document describes the 89504 paired computer cable for EIA RS-232 applications. The cable features 24 AWG stranded tinned copper conductors, FEP insulation, twisted pair configuration, overall Beldfoil shield with 100% coverage, and FEP jacket.
The 89504 Paired cable is a 24 AWG stranded (7x32) tinned copper cable with FEP insulation, a 100 % covered Beldfoil® outer shield, and color‑coded twisted pairs for EIA RS‑232 applications. It is designed for both plenum and non‑plenum installations and includes a drain wire for shielding effectiveness.
The cable complies with NEC/UL, CEC/CCUL, EU CE Mark, and RoHS directives. It operates from –70 °C to +200 °C, has a nominal outer diameter of 0.192 in., and provides detailed electrical characteristics such as inductance, capacitance, and DC resistance.
| Conductor size | 24 AWG stranded (7x32) |
|---|---|
| Insulation material | FEP (Fluorinated Ethylene Propylene) |
| Outer shield coverage | 100 % |
| Outer shield material | Aluminum Foil‑Polyester Tape (Beldfoil®) |
The outer shield is made of aluminum foil‑polyester tape (Beldfoil®).
Yes, the cable is plenum rated with 100 % shield coverage.
