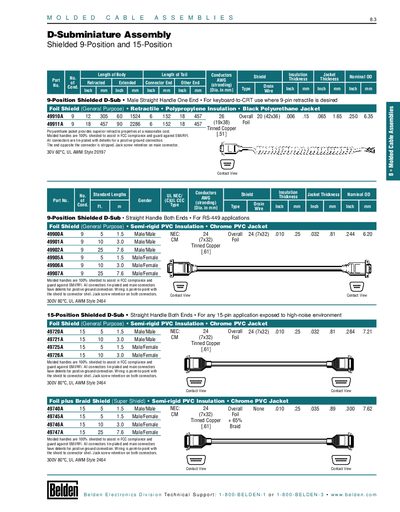

This datasheet lists 9-pin and 15-pin shielded D-Subminiature assemblies, including conductors, specifications, type, shield, insulation, jacket thickness, nominal OD, etc.
The D‑Subminiature Assembly line offers shielded 9‑position and 15‑position connectors with molded handles that are fully shielded to meet FCC compliance and protect against EMI/RFI. Options include foil‑shielded general‑purpose designs, polyurethane or PVC jackets, and straight or retractable handles.
Part numbers such as 49910A, 49720A, and 49745A describe specific configurations, including male/male and male/female versions, conductor counts, and insulation dimensions. Electrical ratings are listed for each series, with 30 V/60 °C for the 9‑position series and 300 V/80 °C for the 15‑position series. All contacts are tin‑plated with detents for a positive ground connection.
| Maximum Voltage (9‑position) | 30 V |
|---|---|
| Maximum Temperature (9‑position) | 60 °C |
| Maximum Voltage (15‑position) | 300 V |
| Maximum Temperature (15‑position) | 80 °C |
| Shield Type | Foil Shield (General Purpose) |
| Jacket Material | Polyurethane Jacket |
| Connector Handle | Straight Handle |
