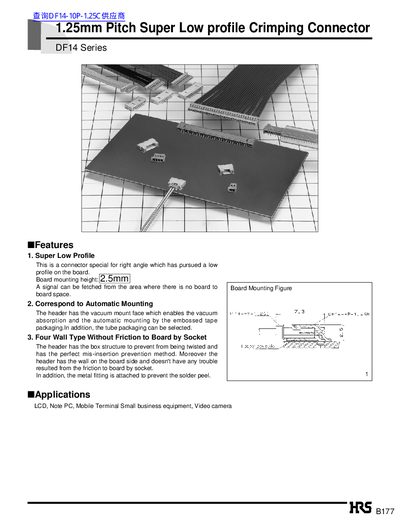

DF14 Series is a right angle connector that pursues a very low profile on the board. The board mounting height is 2.5mm and it can fetch a signal from an area with no board to board space.
The DF14 Series connector from Hirose is a right‑angle, super low‑profile (2.5 mm mounting height) crimping socket designed for automatic mounting and high‑density board layouts. It features a four‑wall structure that prevents friction and mis‑insertion, and is available in various contact counts and plating options.
The document provides detailed product specifications, material data, packaging options, and handling precautions, helping designers select the appropriate part and ensure reliable assembly.
| Current rating | 1 A |
|---|---|
| Voltage rating | 150 V AC |
| Contact pitch | 1.25 mm |
| Operating temperature range | -25 °C to +85 °C |
| Insulation resistance | 500 MΩ (min 100 V DC) |
| Insertion/Extraction force | 0.15 N min – 3 N max |
The connector is rated for a maximum current of 1 A.
All contacts have a 1.25 mm pitch.
