The IRK.56, .71 series is a standard high voltage industrial module with high voltage, high surge capability, and easy installation.
The IRK.56 and IRK.71 series are high‑voltage, Add‑A‑Pak™ Gen V power modules designed for industrial applications such as regulated power supplies, lighting, motor control, UPS and battery chargers. They feature a thick aluminum metal die, double‑stick bonding, a copper baseplate for improved thermal spread, and a TO‑240AA 60 A compatible package.

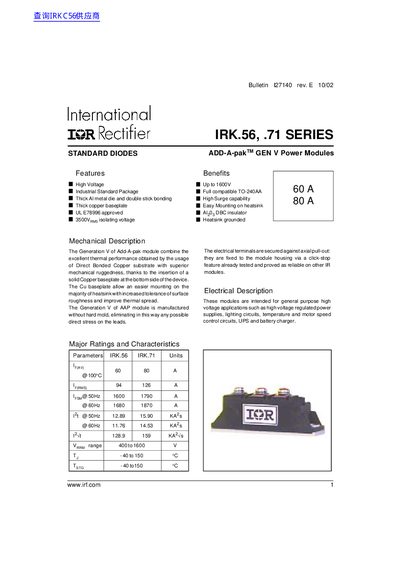

The datasheet provides electrical ratings (voltage, current, leakage), thermal specifications, mechanical dimensions, and ordering information, along with characteristic curves for forward current, power loss, and surge capability.
| Maximum repetitive peak reverse voltage (IRK.56) | 400 V |
|---|---|
| Maximum repetitive peak reverse voltage (IRK.71) | 500 V |
| Maximum average forward current (IRK.56) | 60 A |
| Maximum average forward current (IRK.71) | 80 A |
| RMS isolation voltage (1 s) | 3500 V |
| Junction temperature range | -40 °C to 150 °C |
| Approximate weight | 110 g |
| Case style | TO‑240AA JEDEC |
The IRK.56 series is rated for a maximum repetitive peak reverse voltage of 400 V.
The IRK.71 module has an RMS isolation voltage rating of 3500 V for 1 second.
IRK.56 can carry up to 60 A average forward current, while IRK.71 can carry up to 80 A.
Both series are specified for junction temperatures from –40 °C up to 150 °C.
